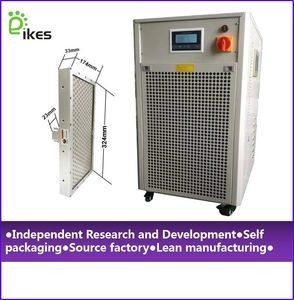

Adhesive UV LED Curing System 365nm 405nm UV LED Curing Equipment

Olks is a photoelectric technology enterprise integrating R & D, production, sales and service. Since its establishment in 2011, it has been engaged in the research and development and application of new environmental protection and energy-saving special light sources, With a professional core technology team, products and solutions have a number of independent intellectual property rights, not only to meet the domestic market, but also to expand business to the global field. At present, products and services have been exported to Japan, South Korea, the United States, Singapore, Europe and other countries and regions, and has been recognized by many international well-known companies. Our company focuses on the production and development of UVLED point, line and surface light source curing products, realizing the band of 365nm, 385nm, 395 ~ 420 UV LED UV light technology can not only improve the production efficiency, but also can replace mercury lamp. At the same time, it can save energy and pollution, and has better curing effect. It is a new type of environmental protection, energy saving, environmental protection and energy saving special purple light technology. The UVLED light source curing equipment produced by our company has been obtained in many fields, such as electronics, optical fiber, liquid crystal, screen printing, packaging, coating, etc Widely used and recognized.
Equipment usage conditions

Working power supply: 220V AC/50Hz;

Working temperature: 1 ºC~55 ºC;

Storage temperature: -10 ºC~65 ºC;

Relative humidity: 30%~80%;

2. Do not place items on working equipment.

3. Please ensure smooth air circulation at the inlet and outlet of the drive, without dust or

Foreign objects can block the air inlet and outlet, otherwise it will affect the stability of the driver's operation.

4. For air-cooled light sources, please ensure smooth air circulation at the inlet and outlet of the irradiation head,

Do not block the air inlet and outlet with dust or foreign objects, otherwise it may affect the light intensity and shadow

five

The lifespan of LED light sources.

5. For water-cooled light sources, the water-cooled machine must use distilled water or purified water

Replace distilled water once a quarter. Please do not use tap water, as tap water

It contains many impurity ions and oxygen, which can easily lead to electrochemical corrosion of the water-cooled plate

And generate chemical precipitation (scale) to reduce the heat dissipation effect of the water cooling system, light source

The illumination and lifespan will both decrease.

6. To ensure the smoothness of each inlet and outlet of the driver, irradiation head, and water cooler,

Please clean the dust from each inlet and outlet 1-5 times a day according to the usage environment.

7. In order to ensure the intensity and uniformity of light output, please consider the use of dirt,

Wipe the glass lenses on the shining surface of the head 1-5 times a day.

8. The maximum bending radius of the connection line between the irradiation head and the driver is the diameter of the connection line

7 times, please do not excessively bend the connecting wire to avoid causing wire failure.

9. Excessive tilting or inversion of equipment is prohibited.
